Xhorse Multi-Prog and SOP44 Adapter Connection

 To connect Xhorse Multi-Prog programmer to an SOP44 adapter (such as the VH24 or VH30 adapter board), you need to swap the internal default adapter board inside the device.

Step-by-Step Connection Guide

1.Open the Device:

Remove the magnetic shield on the top of Multi-Prog unit.

Unscrew the four screws securing the default VH13 interface adapter board that comes pre-installed.

2.Remove Default Adapter:

Gently pull up on the pins of the VH13 board to detach and remove it from the internal slot.

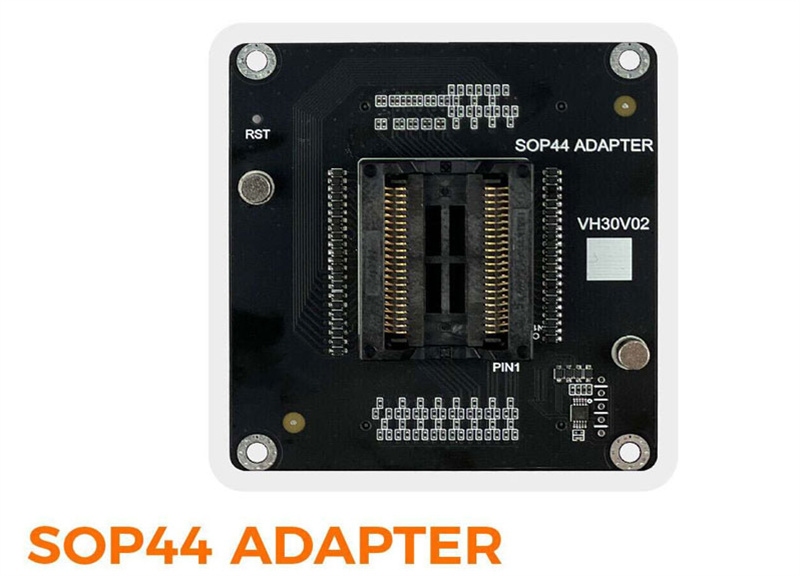

3.Solder the Chip: Solder your target SOP44 flash memory chip (e.g., AM29F400BB) onto the designated pinout position on the SOP44 adapter board.

4.Install SOP44 Adapter:

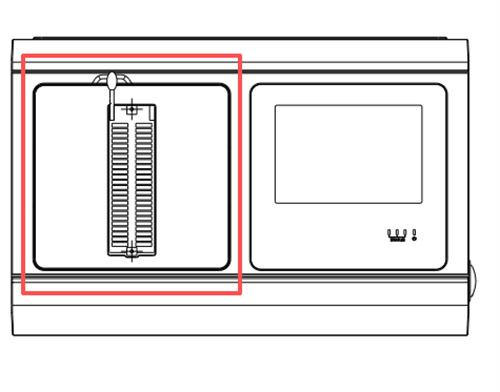

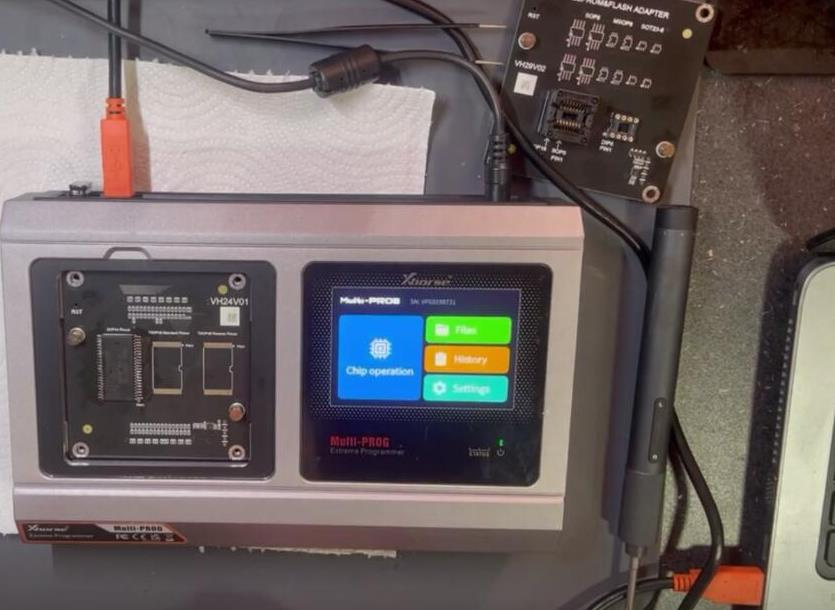

Insert your SOP44 adapter board (like the VH24 or VH30) into the slot of Multi Prog

Ensure it is firmly connected and properly aligned in the upper-left corner of the socket area.

5.Reassemble Shell: Put the magnetic shield and housing back securely.
